Step 1 - Choose Motor Starter based of full load current of the motor

Step 2 - Choose Overload to suit full load current of the motor

Step 3 - Choose Push Button quick kit if required

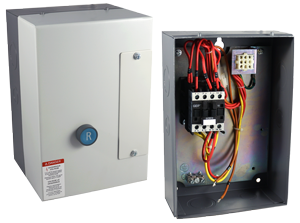

Motor Starter 9AMP NEMA - size 00

Part Number	Sku Code	Description	Drawing
GMS0936G6	8712	Enclosed Metal Motor Starter max FLA 9AMPS 120VAC Control	-
GMS0936U6	8713	Enclosed Metal Motor Starter max FLA 9AMPS 240VAC Control	-
GMS0936T6	8714	Enclosed Metal Motor Starter max FLA 9AMPS 480VAC Control	-
GMS0936L6	6132	Enclosed Metal Motor Starter max FLA 9AMPS 208VAC Control	-

Motor Starter 18AMP NEMA - size 0

Part Number	Sku Code	Description	Drawing
GMS1836G6	8715	Enclosed Metal Motor Starter max FLA 18AMPS 120VAC Control	-
GMS1836U6	8716	Enclosed Metal Motor Starter max FLA 18AMPS 240VAC Control	-
GMS1836T6	8717	Enclosed Metal Motor Starter max FLA 18AMPS 480VAC Control	-
GMS1836L6	6133	Enclosed Metal Motor Starter max FLA 18AMPS 208VAC Control	-

Motor Starter 32AMP NEMA - size 1

Part Number	Sku Code	Description	Drawing
GMS3236G6	8718	Enclosed Metal Motor Starter max FLA 32AMPS 120VAC Control	-
GMS3236U6	8719	Enclosed Metal Motor Starter max FLA 32AMPS 240VAC Control	-
GMS3236T6	8720	Enclosed Metal Motor Starter max FLA 32AMPS 480VAC Control	-

Motor Starter 50AMP NEMA - size 2

Part Number	Sku Code	Description	Drawing
GMS5036G6	8721	Enclosed Metal Motor Starter max FLA 50AMPS 120VAC Control	-
GMS5036U6	8722	Enclosed Metal Motor Starter max FLA 50AMPS 240VAC Control	-
GMS5036T6	8723	Enclosed Metal Motor Starter max FLA 50AMPS 480VAC Control	-
GMS5036L6	6131	Enclosed Metal Motor Starter max FLA 50AMPS 208VAC Control	-

Motor Starter 80AMP

Part Number	Sku Code	Description	Drawing
GMS8036G6	8724	Enclosed Metal Motor Starter max FLA 80AMPS 120VAC Control	-
GMS8036U6	8725	Enclosed Metal Motor Starter max FLA 80AMPS 240VAC Control	-
GMS8036T6	8726	Enclosed Metal Motor Starter max FLA 80AMPS 480VAC Control	-

Quick Kits for Enclosed Metal Starters

Part Number	Sku Code	Description	Drawing
GMSC6	8727	Quick Kit On / Off Selector Switch	-
GMSC	8728	Quick Kit Hand / Off / Auto Selector Switch	-
GMSA2	8729	Quick Kit On / Off Push Buttons	-
